Name: Milesight WT102 Self-Powered LoraWAN Smart Radiator Thermostat
SKU: WT102-868M
Price: 120.0 EUR
Availability: InStock

Milesight WT101 - WT102 Smart Radiator Thermostat

The WT10x smart radiator thermostat enables direct control of heating thanks to accurate temperature measurement. Available in the battery-powered WT101 variant or the self-powered WT102 variant, it ensures maximum energy efficiency and significant cost savings.

The Milesight Smart Radiator Thermostat WT10x overwhelms traditional thermostats with fixed settings and offers dynamic precision. By monitoring the room temperature in real-time, it automatically adjusts the valve opening to regulate the exact amount of hot water. This smart mechanism ensures constant comfort and superior energy efficiency.

Accurate temperature measurement

The built-in, highly accurate sensor provides precise environmental measurement and thus ensures stable control.

Control per room

Set independent temperature settings for specific zones or rooms.

Control of maximum flow

Limit the maximum valve opening to regulate heat output and prevent overheating.

Optimise your heating, minimise your effort

Zero-waste strategies

Smart scheduling

Supports up to 16 customised heating schedules within a pre-set period.

Automatically adjusts temperatures to specific daily routines, achieving precise comfort and minimising energy consumption.

Open window detection

Automatic frost protection

Quick to implement, manage remotely

Maintenance-free operation via FUOTA

Manage devices centrally via bulk commands and keep functions up-to-date with FUOTA firmware upgrades. This ensures continuous security updates and system optimisation without the need for costly on-site maintenance visits.

NFC configuration at the touch of a button

WT102 Exclusive: the innovation with its own power supply

Self-power supply, maintenance-free

The Milesight WT102 uses thermal energy generation, meaning batteries never need to be replaced, and features Type-C charging for reliability out of season. Benefit from a maintenance-free operation and significant savings on labour costs.

Class B: immediate response

Robust metal housing

Intuitive to use, full protection

Interactive LED display

Clear on-site visibility for real-time status and temperature checks.

Child lock that cannot be tampered with

Theft protection

Compatible with all types of valves

Product features

Wireless transmission
Protocol	LoRaWAN®
Frequency	IN865/RU864/EU868
Transmission power	16 dBm (868 MHz)
Sensitivity	-137 dBm
Mode	OTAA/ABP Class A
Valve control
Actuation	Stepper motor
Standard valve connection	M30 × 1.5 mm
Optional adapters	RA, RAV, RAVL, Giacomini, M28 (Comap, Herz, TA)
Advanced features	Automatic temperature control, heating schedules, child lock, frost protection, detection of open windows, sabotage alarm
Temperature sensor
Sensor type	NTC
Range	-20 °C ~ 60 °C
Accuracy	± 0.5 °C (0 °C ~ 50 °C)
Resolution	0.1 °C
Other
Display	LED display with white light
Buttons	1 × AN-UIT/ RESET 2 x Temperature/valve open control button
USB	1 x Type C power for external NTC Sensor
SOFTWARE
Configuration	NFC configuration via mobile app
Advanced Features	Child lock, mode for external sensor, data storage (1,000 records), data retransmission, data retrieval, multicast, FUOTA
Physical properties
Power	1. Operates on its own power thanks to temperature difference¹ 2. 5 V via USB Type-C port total)
Operating temperature	-20 °C ~ +60 °C
Storage temperature	-40 °C ~ +70 °C (without batteries)
Relative humidity	0% - 95% (non-condensing)
Protection class	IP30
Dimensions	Φ 50 x 60 x 101.9 mm
Material & colour	Aluminium + ABS, white
Installation	Snap onto the lid

1: When the water temperature is higher than 45 °C, the device is powered via the thermoelectric effect.

Possible versions

WT101-868M	LoRaWAN Smart Radiator thermostat standard version
WT102-868M	LoRaWAN Smart Radiator thermostat - self-sustaining

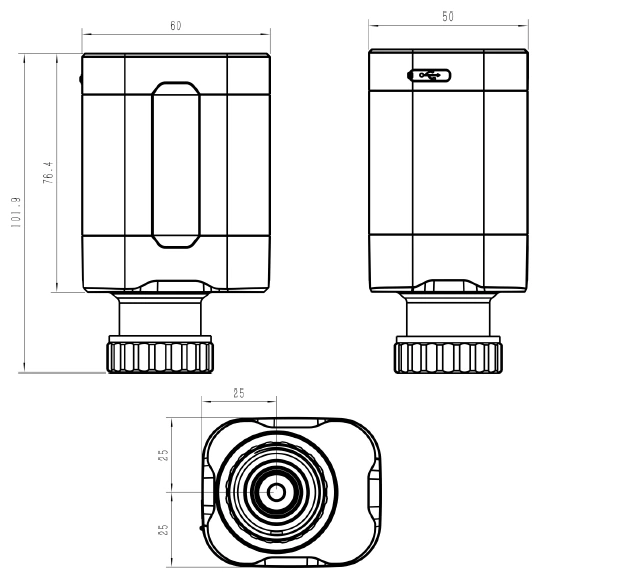

DIMENSIONS

Comparison WT101 - WT102

Model name	WT101	WT102
Protocol	LoRaWAN®	LoRaWAN®
Mode	OTAA/ABP Class A	OTAA/ABP, Class A/Class B
Optional adapters	RA, RAV, RAVL, Giacomini, M28 (Comap, Herz, TA)	RA, RAV, RAVL, Giacomini, M28 (Comap, Herz, TA, Markaryd) (Customisable)
Buttons	1 × control button 1 × calibration & sabotage button (internal) 1 × reset button (internal)	1 × on/off/reset button 2 × buttons for temperature/valve opening control
USB	/	1 × USB Type-C for power, charging or connection of an external NTC sensor
Power supply	2 × replaceable 1.5 V Li-FeS₂ AA batteries (3000 mAh total)	1. Self-sufficient via temperature difference 2. 5 V via USB Type-C port
Battery life	Approximately 8 years (SF7, EU868) Approximately 5 years (SF10, EU868) (interval of 10 min. + one control during a heating season of 5 months, 25 °C)	/
