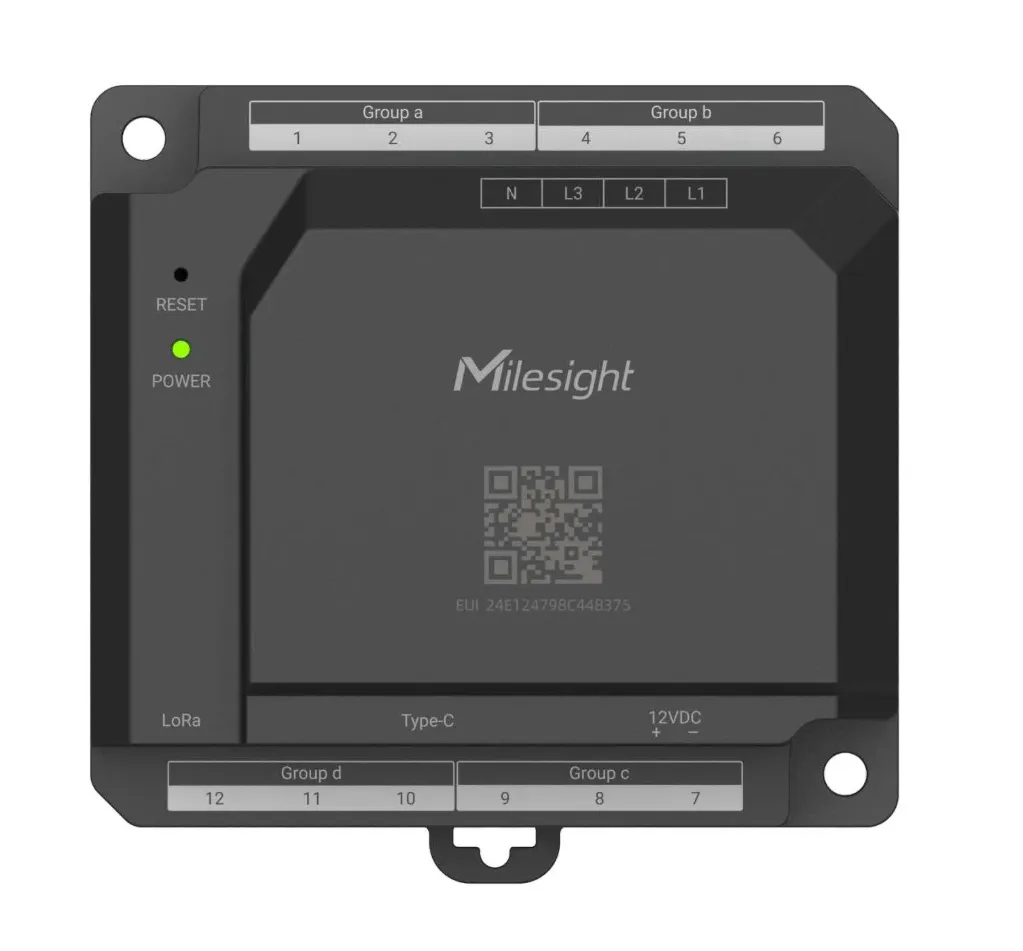

The CTH01 Smart Power Monitor Hub is a powerful,
multi-channel device designed for collecting and analysing
electrical parameters. With support for simultaneous measurement of
12 current channels and 3 voltage channels, combined with highly accurate
calculations, the CTH01 provides a comprehensive range of electrical parameters,
including power, energy, power factor, harmonic distortion, and
three-phase voltage imbalance.
Thanks to LoRaWAN® wireless communication and Bluetooth for
local configuration, the CTH01 integrates seamlessly into energy management systems and
provides reliable data to support energy saving, preventive
maintenance, and cost allocation.
The CTH01 is designed for commercial buildings, industrial
installations, data centres, and multi-tenant apartment complexes to
enable accurate measurement of energy consumption, monitoring of power quality, and operational
analysis of equipment for critical circuits within electrical
distribution systems.
Features
Comprehensive and accurate monitoring
·
Provides highly accurate measurements of active,
reactive, and apparent power and energy, integrated with features for
power quality analysis, such as THD of voltage/current and three-phase
voltage imbalance.
·
Complies with IEC 62053-21/23 standards to
ensure professional measurements.
·
Supports an external wire temperature sensor
for measuring cable temperature.
Flexible configuration and implementation
·
The 12 current channels can be configured independently
for single-phase use, grouped into 4 three-phase
circuits, or for mixed use.
·
Supports mixed use of split-core
current transformers (100 A/300 A/500 A/1000 A) and 4000 A Rogowski coils (the
coils must be of the same type within a group).
·
Provides easy voltage measurement via direct
connection through voltage measurement clamps or an optional non-invasive
magnetic attachment, allowing for flexible installation.
·
Complete parameter setting, reading of
data and calibration of the current direction can be performed remotely
via the Bluetooth-connected Toolbox app, making physical access
unnecessary.
Reliability and industrial-level storage
·
A sampling frequency of 6–8 kHz
guarantees the accuracy of the data measurement.
·
Stores periodic data records,
event logs and up to 12 months of monthly maximum/minimum values
and energy totals.
·
Supports user-defined
threshold alarms and device-initiated
overload/out-of-range alarms.
Powerful expansion and integration
·
Built-in LoRaWAN® protocol for seamless
integration with the Milesight Development Platform and third-party platforms.
·
Supports Firmware Update Over-The-Air
(FUOTA) updates for functionality improvements.
