TELTONIKA TAP100 - POE- Avec alimentation DC

TELTONIKA TAP100 - POE- Avec alimentation DC

Name: TELTONIKA TAP100 - POE- Avec alimentation DC
SKU: TAP100000000
Price: 48.0 EUR
Availability: InStock

(0 review)

WIFI-ACCESS POINT

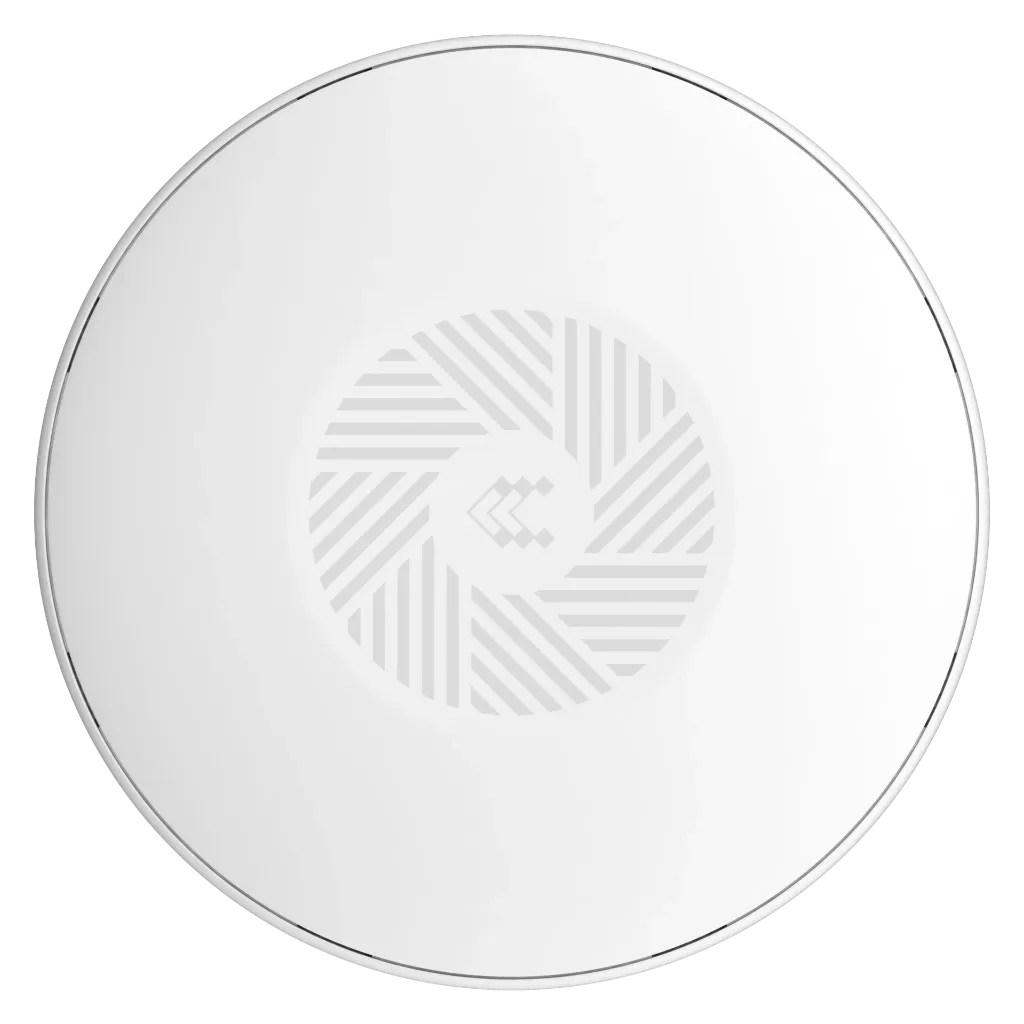

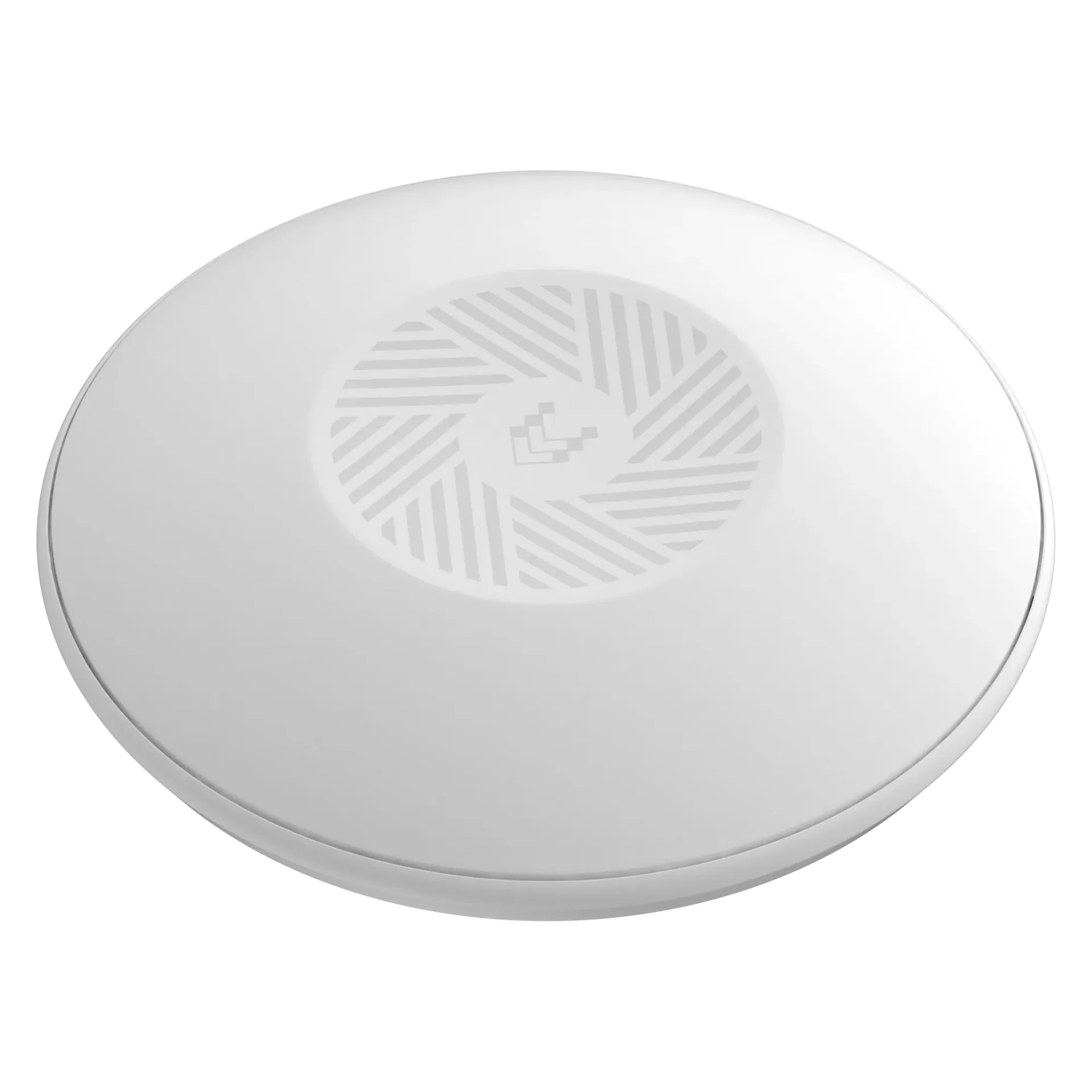

The TAP100 is the very first access point from Teltonika Networks, ideal for enhancing Wi-Fi coverage in small businesses and commercial spaces. This PoE-in access point can be powered via the RJ45 port by active PoE devices and is designed with simplicity and ease of installation in mind.

48.00 € (Tax excluded)

Add to cart Buy now

Terms and conditions
Shipping: 2-3 working days

WIFI-ACCESS POINT

The TAP100 is the very first access point from Teltonika Networks, ideal for enhancing Wi-Fi coverage in small businesses and commercial spaces. This PoE-in access point can be powered via the RJ45 port by active PoE devices and is designed with simplicity and ease of installation in mind.

PoE-IN

Can be powered via the RJ45 port by PoE devices

SLEEK DESIGN

UV-resistant plastic housing that seamlessly fits into the environment

EASY INSTALLATION

Integrated mounting bracket for easy installation on the ceiling

RMS MANAGEMENT

Free access to RMS management for 24 months

Text

Product features

Product features	TAP100
HARDWARE	Teltonika
Product code	TAP100000000
EAN code
5G	-
4G/LTE	-
2G/3G	-
CPU (MHz)	580 MHz
RAM (MB)	64 MB
Flash Memory (MB)	16 MB
Power supply voltage	44-57 V DC
eSim	-
SIM card slots	-
Antenna connectors	2 x Internal for 2.4 GHz Wi-Fi Antennas specifications 2 x 2400 - 2500 MHz, 50 Ω, VSWR 2.7, gain < 4.9 dBi, omnidirectional
Ethernet ports	1 x RJ45 port,
Speed Internet ports (Mbps)	10/100 Mbps
Active POE- OUT	-
Active POE-IN	Yes
Passive POE-IN	-
WiFi standard	n
GNSS	No
Inputs / Outputs	No
Serial RS232	No
Serial RS485	No
Mbus	No
Bluetooth	No
SD Card	No
USB	No
Integrated din rail mounting	Yes
Earthing terminal	No
Temperature range	-40 °C to 75 °C
Housing	UV Stabilised plastic
Dimensions	Ø 158 mm x 30 mm
SOFTWARE
Operating System	RutOS : (OpenWrt based Linux OS)
Mobile capabilities	-
Wireless capabilities	Wireless mesh 802.11s), fast roaming 802.11r), BSS transition management 802.11v), radio resource measurement 802.11k)
Network capabilities	Network protocols: TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH A DNS-over-HTTPS proxy provides secure DNS resolution by routing DNS requests via HTTPS Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
Security	Based on SSH keys, HTTPS, CLI, IP address and login attempt blocking, time-based login blocking, built-in generator for random passwords Tag-based VLAN separation With the Certificate Manager tool for creating certificates, you can create CA, server, client, Let’s Encrypt, and SCEP certificates 802.1x data to server Port-based network access control for clients
VPN
Monitoring and Management	HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, notifications about the availability of firmware updates, event log, system log, kernel log, FOTA firmware update from the server, automatic notifications, SSH (v1, v2), email: receive status alerts from various services via email, JSONRPC: management API via HTTP/HTTPS
Cloud solutions	Teltonika Remote Management System RMS
Services
Location Tracking	-
SMS properties	-
HOTSPOT	Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks

HARDWARE	Teltonika
Product code	RUT956200000
EAN code
5G	No
4G/LTE	Yes
2G/3G	Yes
CPU (MHz)	590
RAM (MB)	128
Flash Memory (MB)	16
Power supply voltage	9-30 V DC, 4 pin connector
eSim	Yes
SIM card slots	2 Mini Sim 2FF
Antenna connectors	2 X SMA for LTE - 2 x RP-SMA for WIFI - 1x SMA for GNSS
Ethernet ports	4 x RJ45 , 1WAN / LAN configurable
Speed Internet ports (Mbps)	10/100 Mbps
Active POE- OUT	-
Active POE-IN	-
Passive POE-IN	Yes
WiFi standard	802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
GNSS	Yes , GPS, GLONASS, BeiDou, Galileo and QZSS
Inputs / Outputs	7 pieces 1 x digital dry input (0 - 3 V) 1 x digital galvanically isolated input (0 - 30 V) 1 x analogue input (0 - 24 V; with 4-20 mA capacity), 1 x digital non-isolated input (on 4-pin power connector) 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x digital open collector output (30 V, 300 mA, on 4-pin power connector)
Serial RS232	Yes
Serial RS485	Yes
Mbus	No
Bluetooth	-
USB	Host
Integrated din rail mounting	No
Earthing terminal	No
Temperature range	-40 to +75 °C
Housing	Aluminium , IP30
Dimensions	100 x 110 x 50 mm
SOFTWARE
Operating System	RutOS : (OpenWrt based Linux OS)
Mobile capabilities	SIM switch, Status, SMS, USSD, Block/Allow list, Multiple PDN, Band management, SIM PIN code management, APN, Bridge, Passthrough
Wireless capabilities	Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate
Network capabilities	VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, Port Mirroring
Security	Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation
VPN	Open VPN, Multiple clients and one server can be run simultaneously, 27 encryption methods
Monitoring and Management	WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Cloud solutions	RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core
Services	BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM
Location Tracking	GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing
