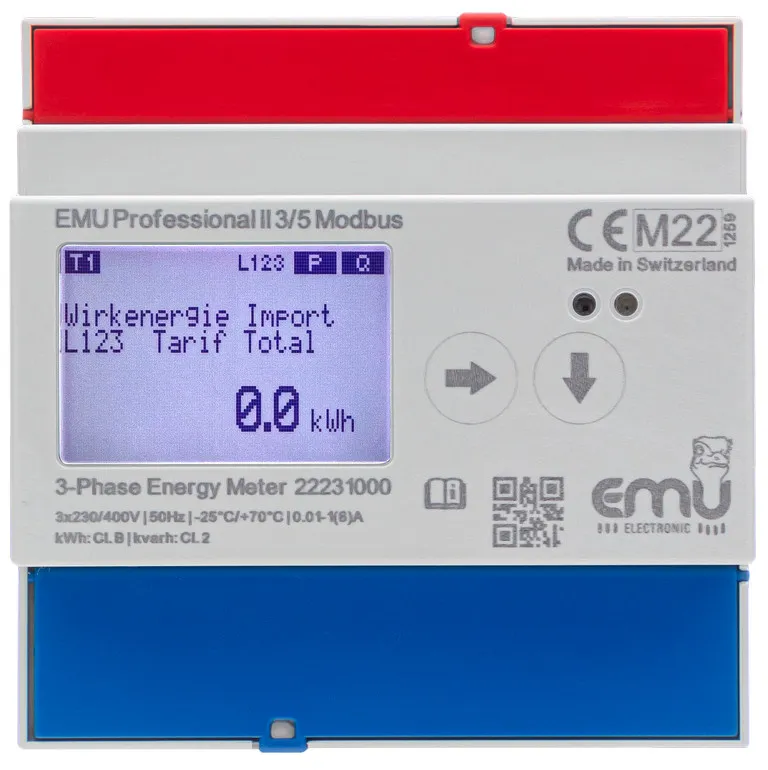

ModBus 3 Phase kWh via current transformers 5A or 1A - MID - EMU Professional II 3/5 P21A000MO

ModBus 3 Phase kWh via current transformers 5A or 1A - MID - EMU Professional II 3/5 P21A000MO

(0 review)
Three-phase electricity meter via current transformers with secondary current 5A or 1A with S0 pulse output and ModBus interface The EMU Professional II 3/5 ModBus is a 3-phase energy meter with MID approval and ModBus interface. Three-phase electricity meter via current transformers with secondary current 5A or 1A with S0 pulse output and ModBus interface Electronic three-phase electricity meter for DIN rail mounting. Detection of active and reactive energy, power factor cos φ, consumption and production (import/export). MID B & D approved for billing purposes. Certified for PV systems according to DIN CLC / TR 50579: 2012. Suitable for energy management systems according to ISO50001. Fully compatible with the energy management system EMU Joulio-Web
195.00 € 195.00 € (Tax excluded)
195.00 € (Tax excluded)

Add to cart Buy now
Terms and conditions
Shipping: 2-3 working days
Contact Us

The EMU Professional II 3/5 Modbus is a 3-phase energy meter with MID approval.

With integrated Modbus communication interface RTU RS485, protected against pollution and tampering.


  • Modbus interface RTU RS485 protected against contamination and manipulation
  • Current measurement via current transformers with secondary 1A or 5A.
  • Electronic three-phase electricity meter for DIN rail mounting. Detection of active and reactive energy, power factor cos φ, consumption and production (import/export).
  • MID B & D approved for billing purposes.
  • Certified for PV systems according to DIN CLC / TR 50579: 2012.
  • Suitable for energy management systems according to ISO50001.
  • Fully compatible with the EMU Joulio-Web energy management system.
  • 3x230/400VAC, 5A, 50Hz
  • Integrated tamper detection. Recording and archiving of configuration changes.
  • Protection against tampering with a sealable connection cover.
  • Configuration via Downlink.


Product properties


Connection diagram

MosBus Energy Meter Configuration

All registers are available for reading Modbus RTU and TCP. The registers are read-only, except for the specifically mentioned registers (5026 and 11000+).

Factory default settings
Slave Address: 1
Baud Rate: 19200
Parity Stop Bits: 1
Data Bits: 8

Measurements on the LoRa electricity meter

- Active power (kW)

- Reactive power (kvar)

- Apparent power (kVA)

- Current (A)

- Consumption of active energy (kWh) and delivery (kWh)

- Reactive energy consumption (kvarh) and delivery (kvarh)

- Frequency (Hz)

- Number of power interruptions

S0 pulse output

In addition to the LoRa radio interface, the EMU Professional II energy meter has a configurable S0 pulse output.

- Active energy consumption or active energy supply

- Reactive energy consumption or reactive energy supply

Factory configuration with direct connection: 1,000 pulses/ kWh, 40 ms

Rate Control

 Rate switching occurs by connecting 230VAC to the corresponding terminal.

0 = no voltage; 1 = 230VAC,

Dimensions

EMU ENERGY MANAGEMENT - BILLING


EMU Professional II Datasheet




Emu Professional II Q S G




EMU Professional II ModBus Manual




EMU Professional II Manual
