LORA 3 Phases kWh via current transformers 5A or 1A for internal antenna - MID - EMU Professional II 3/5 P21A000LO

P21A000LO EMU PROFESSIONAL II 3/5 LORA INTERNAL ANTENNA MEASUREMENT VIA CURRENT TRANSFORMERS MID ENERGY METER

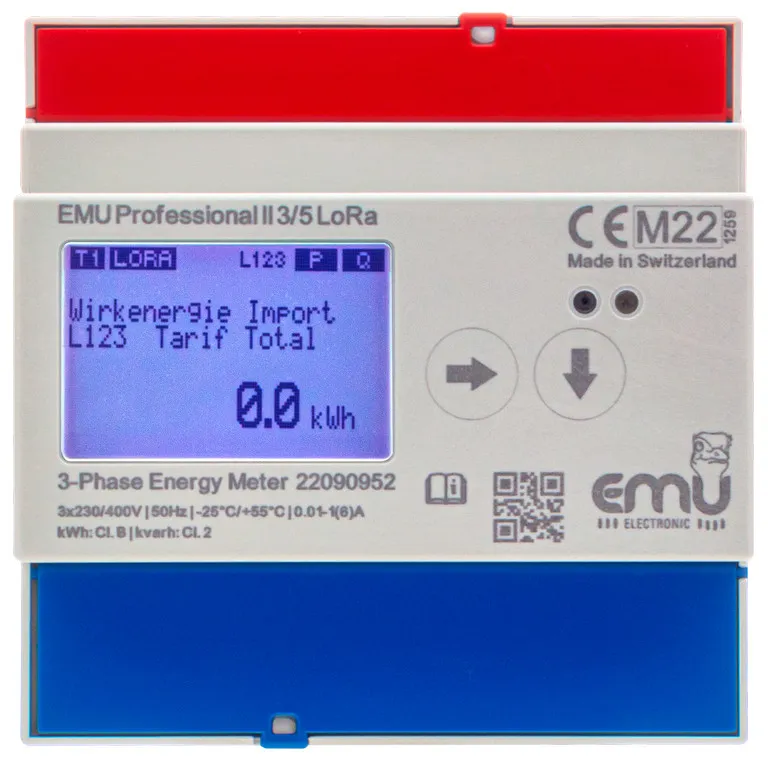

The EMU Professional II 3/5 LoRa Ant is a 3-phase energy meter with MID approval and LoRa radio interface and has an internal LoRa antenna.

The LoRa interface of the EMU Professional II 3-phase energy meter is based on the wireless LoRa standard. This allows the energy meter to reliably transmit data over long distances, in areas without permanent communication or as a roaming device.

To ensure a stable and powerful connection with the LoRa gateway, the LoRa interface continuously adjusts the optimal transmission and reception parameters.

For easier integration of the energy meter, the status of the LoRa network connection can be viewed at any time on the display.

• Two-way communication
• The LoRa interface is ready to always receive (class C)
• The internal LoRa antenna has a signal strength of 14dbm
• Measurement via current transformers with secondary current of 1 or 5 A.
• Electronic three-phase electricity meter for DIN rail mounting. Detection of active and reactive energy, power factor cos φ, consumption and production (import/export).
• MID B & D approved for billing purposes.
• Certified for PV systems according to DIN CLC / TR 50579: 2012.
• Suitable for energy management systems according to ISO50001.
• Fully compatible with the EMU Joulio-Web energy management system.
• 3x230/400VAC, 5A, 50Hz
• Integrated tamper detection. Recording and archiving of configuration changes.
• Protection against tampering with a sealable connection cover.
• LoRaWAN wireless radio interface integrated into the device. External antenna.
• Configuration via Downlink.
