Product properties
Connection diagram
LoRa Energy Meter Configuration
Each energy meter is delivered from the factory with the following configuration:
- JoinMode: OTAA
- DevEUI (starts with 102CEF)
- Appkey
- AppEUI (10 2C EF 00 00 00 00 00)
Measurements on the LoRa electricity meter
- Active power (kW)
- Reactive power (kvar)
- Apparent power (kVA)
- Current (A)
- Consumption of active energy (kWh) and delivery (kWh)
- Reactive energy consumption (kvarh) and delivery (kvarh)
- Frequency (Hz)
- Number of power interruptions
S0 pulse output

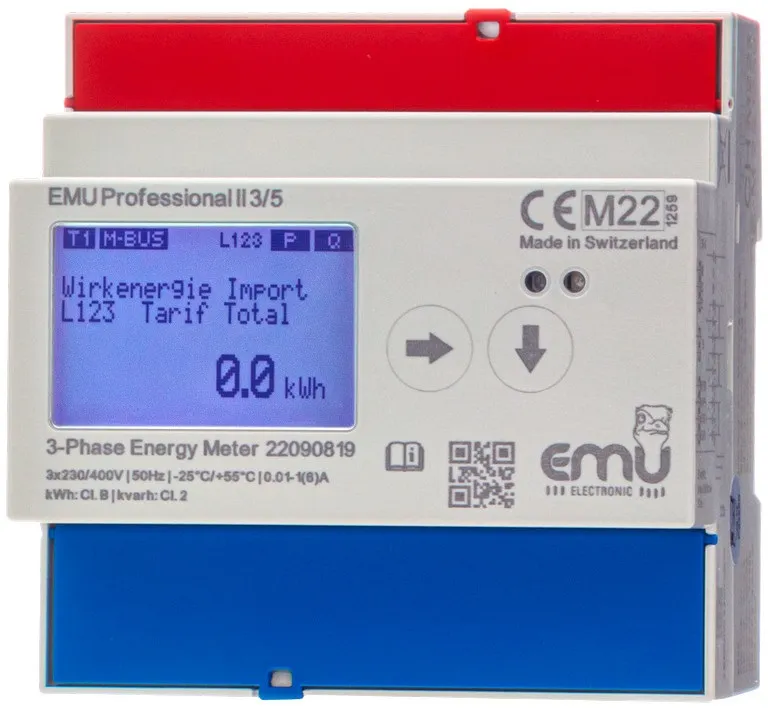

In addition to the LoRa radio interface, the EMU Professional II energy meter has a configurable S0 pulse output.
- Active energy consumption or active energy supply
- Reactive energy consumption or reactive energy supply
Factory configuration with direct connection: 1,000 pulses/ kWh, 40 ms
Rate Control
Tariff switching occurs by connecting 230VAC to the corresponding terminal.
0 = no voltage; 1 = 230VAC,
Dimensions
