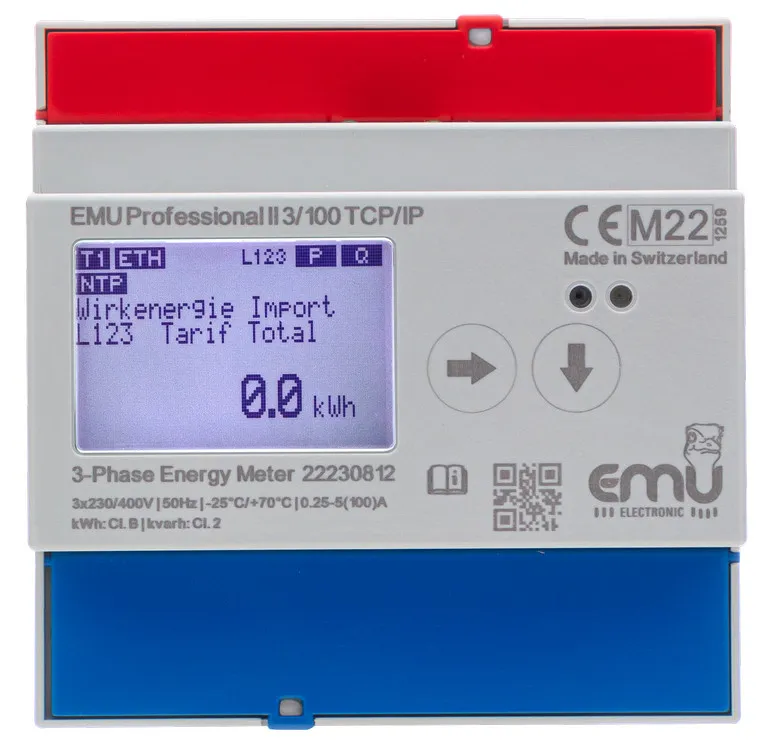

TCP/IP 3 Phases kWh 100A - MID - EMU Professional II 3/100 P20A000T

(0 review)
Three-phase electricity meter 100A, with TCP/IP interface The EMU Professional II 3/100 TCP/IP is a three-phase energy meter with MID approval and TCP/IP interface. Three-phase electricity meter up to 100A with S0 pulse output and TCP/IP interface Electronic three-phase electricity meter for DIN rail mounting. Detection of active and reactive energy, power factor cos φ, consumption and production (import/export). MID B & D approved for billing purposes. Certified for PV systems according to DIN CLC / TR 50579: 2012. Suitable for energy management systems according to ISO50001. Fully compatible with the EMU Joulio-Web energy management system.
345.00 € 345.00 € (Tax excluded)
345.00 € (Tax excluded)

Add to cart Buy now
Terms and conditions
Shipping: 2-3 working days
Contact Us

P20A000T EMU PROFESSIONAL II 3/100 with TCP/IP interface. DIRECT 100A MID ENERGY METER

The EMU Professional II 3/100 TCP/IP is a three-phase energy meter with MID approval and TCP/IP interface.

The TCP/IP communication interface of the 3-phase energy meter EMU Professional II is a Modbus TCP interface including API, protected against contamination and manipulation.

Protection against tampering with a sealable connection cover.

  • Two-way communication
  • TCP/IP Interface
  • Direct measurement up to 100 A.
  • Electronic three-phase electricity meter for DIN rail mounting. Detection of active and reactive energy, power factor cos φ, consumption and production (import/export).
  • MID B & D approved for billing purposes.
  • Certified for PV systems according to DIN CLC / TR 50579: 2012.
  • Suitable for energy management systems according to ISO50001.
  • Fully compatible with the EMU Joulio-Web energy management system.
  • 3x230/400VAC, 100A, 50Hz
  • Integrated tamper detection. Recording and archiving of configuration changes.
  • Protection against tampering with a sealable connection cover.


Product properties


EMU ENERGY MANAGEMENT - BILLING

Connection diagram

Dimensions

TCP/IP Energy Meter Configuration

Once the EMU Professional II TCP/IP is connected to your network via an Ethernet cable, you can access it through a web browser. Go to your meter at the following address:
http://[IP address of the meter]/

You can find the IP address under "Settings" > "IP address"

This will take you to the web interface of the device to configure it further.

Measured values on the TCP/IP electricity meter

- Active power (kW)

- Reactive power (kvar)

- Apparent power (kVA)

- Current (A)

- Consumption of active energy (kWh) and delivery (kWh)

- Reactive energy consumption (kvarh) and delivery (kvarh)

- Frequency (Hz)

- Number of power interruptions

S0 pulse output

In addition to the LoRa radio interface, the EMU Professional II energy meter has a configurable S0 pulse output.

- Active energy consumption or active energy supply

- Reactive energy consumption or reactive energy supply

Factory configuration with direct connection: 1,000 pulses/ kWh, 40 ms

Rate Control

 Tariff switching occurs by connecting 230VAC to the corresponding terminal.

0 = no voltage; 1 = 230VAC,


EMU Professional II Datasheet




Emu Professional II Q S G




EMU Professional II TCP/IP Manual




EMU Professional II Manual
